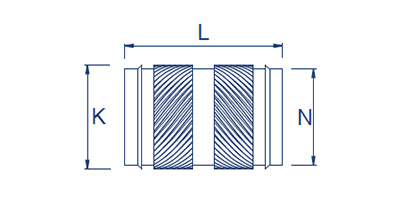

Description: TEC-B-M3

TEC Inserts have been designed for post mould installation into thermoplastics, using heat or ultrasonics, the opposing knurls providing a combination of high pull-out and torque resistance.

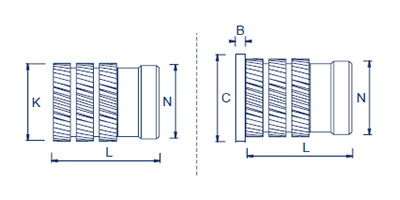

Description: UH/H-SP-B-M3

Spirol Inserts have been designed for installation into post mould thermoplastics. The sharp knurls of the insert cut into the boss material during installation thereby reducing the stress in brittle thermosets.

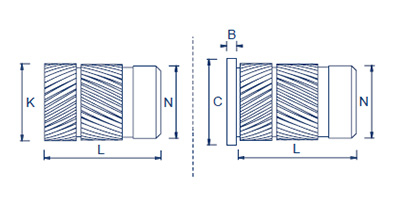

Description: UH/H-SI-B-M3

Sonic Inserts have been designed for post mould installation into thermoplastics, using heat or ultrasonics with the opposing knurls providing a combination of high pull out and torque resistance.

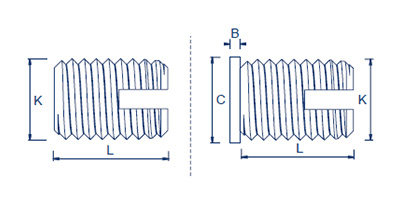

Description: UH/H-SC-B-M3

Screw Inserts are self-tapping inserts, designed for post mould installation into thermoplastics and thermoset plastics. They are ideally suited to applications which may involve high jack-out loading.

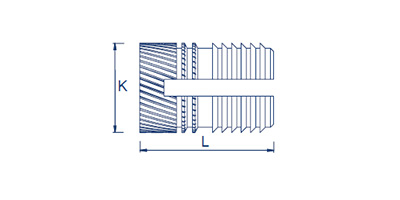

Description: P-B-M3

Press Inserts are press-in inserts designed for post mould installation into thermoplastic. The knurl pattern and the vanes make this an ideal insert for hard thermoplastic.

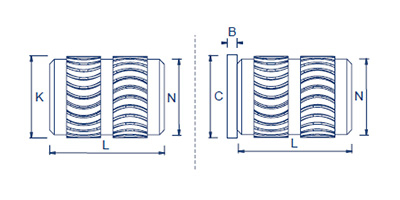

Description: UH/H-H-B-M3

Heat Inserts have been designed for post mould installation into notch-sensitive thermoplastics using heat. The rounded knurls alleviate stress in the mating boss.

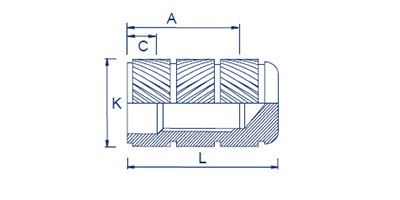

Description: FL-B-M3

Flow Inserts are blind inserts designed to be installed during the moulding process.

Installation Note: It is critical that the mould pins used are designed to locate the Flow Insert and prevent plastic ingress.

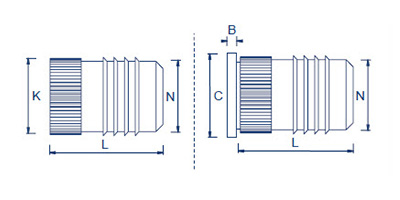

Description: UH/H-F-B-M3

The Fin Insert is a press-in insert designed for post mould installation into thermoplastics. The combination of the fins and knurls provides good levels of pull-out and torque resistance.

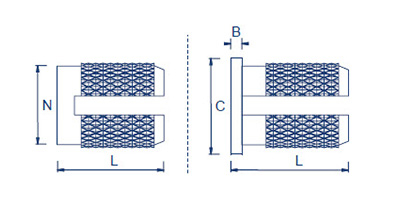

Description: UH/H-EX-B-M3

Expansion Inserts are press-in inserts designed for post mould installation into thermoset plastic. The knurl pattern makes them ideal for hard thermosets.
