Description: P-B-M3
Press Inserts are press-in inserts designed for post mould installation into thermoplastic. The knurl pattern and the vanes make this an ideal insert for hard thermoplastic.

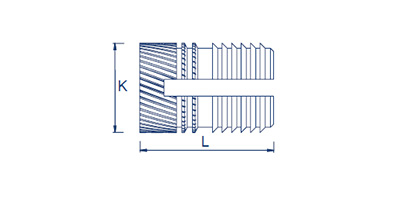

| Thread | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 |
| L | 4 | 5.8 | 5.8 | 7.2 | 8.2 | 9.5 | 12.7 | 12.7 |
| K | 3.7 | 4.5 | 4.5 | 5.3 | 6.2 | 6.9 | 8.5 | 10.1 |
| r-0.00 +0.10 | 3.2 | 4 | 4 | 4.8 | 5.6 | 6.4 | 8 | 9.6 |
| w min | 1.6 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 4.8 |
| Materials | Finishes | Part Number Examples |
| Brass | Self Colour |
Type | Thread i.e. : P-B-M3 |
The press Insert is installed using a press that can provide a steady squeezing action to prevent damage to the mating boss.
