Description:-F-BSO-Thread ø-Length-Finish : eg F-BSO-M4-16-Z
Self Clinching Blind Standoffs provide a strong torque resistant female thread in thin sheet material and can also be used as a spacer.
Available in Steel and Stainless Steel thread sizes M2.5 to M5
| Lengths | Thread Size | Length (L) ± 0.2 | ||||||||||
| M3 | - | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| 3.5 M3 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M4 | - | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M5 | - | - | - | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| Length (mm) | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 |

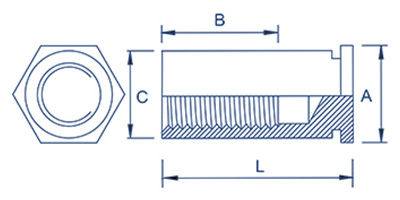

| Blind Hole “B” Dimension (Min) | 3.2 | 4.0 | 5.0 | 6.5 | 9.5 | ||||||
| Thread & Pitch | Hole Size in Panel + 0.08 - 0.0 | Min Sheet Thickness | C + 0.0 - 0.13 | A Nom | Min C/L to edge of panel | Torque Out Nm | Push Out Nm |
| M3 x 0.5 | 4.22 | 1.02 | 4.2 | 4.8 | 6 | 2.63 | 1012 |
| 3.5M3 x 0.5 | 5.41 | 1.02 | 5.39 | 6.4 | 6.8 | 4.1 | 1879 |
| M3.5 x 0.6 | 5.41 | 1.02 | 5.39 | 6.4 | 6.8 | 4.1 | 1879 |
| M4 x 0.7 | 7.14 | 1.27 | 7.12 | 7.9 | 8 | 8.48 | 2517 |
| M5 x 0.8 | 7.14 | 1.27 | 7.12 | 7.9 | 8 | 8.48 | 2517 |
|
Materials |
Finishes | Limitations | Part Numbers |
|
Materials:- Carbon Steel 300 Series Stainless Steel (A2) 400 Series Stainless Steel (400) |
Finishes:- Bright Zinc / Clear Passivate (ZI) & Other Finishes to Order |
The following installation panel material hardness limitations apply when installing Self Clinching Standoffs. Steel Clinch Standoffs: 80HRB Max, 300 series Stainless Steel Clinch Standoffs: 70HRB Max, 400 series Stainless Steel Clinch Standoffs: |
Type | Thread | Length | Finish i.e. : F-BSO-M4-16-Z (Blind Standoff - M4 x 16mm - Steel - BZP) i.e. : F-BSO-3.5M3-10-A2 (Blind Standoff - 3.5M3 x 10mm - Stainless 5.4mm Hole Size) |
